Pumps
Feed and High Pressure Pumps
Engineered for reliability and energy efficiency in RO, EDI, and UF systems.
- High-performance multistage centrifugal design
- Stainless steel (SS316/SS316L) construction for corrosion resistance
- Compact, skid-mounted or inline installation
- Integrated mechanical seal for leak-proof operation
Sanitary Transfer Pumps
Designed for hygienic applications, ensuring consistent water flow and pressure.
- Constructed from SS316L with polished internal surfaces (Ra < 0.6 µm)
- Hygienic design with minimal dead legs and crevices
- Available in centrifugal, diaphragm, peristaltic, and lobe pump types
- Tri-clamp or sanitary flange connections for easy integration and cleaning
- Suitable for CIP (Clean-in-Place) and SIP (Steam-in-Place) processes
Sanitary Transfer Pumps
Designed for hygienic applications, ensuring consistent water flow and pressure.
- Constructed from SS316L with polished internal surfaces (Ra < 0.6 µm)
- Hygienic design with minimal dead legs and crevices
- Available in centrifugal, diaphragm, peristaltic, and lobe pump types
- Tri-clamp or sanitary flange connections for easy integration and cleaning
- Suitable for CIP (Clean-in-Place) and SIP (Steam-in-Place) processes
Centrifugal pumps
Centrifugal pumps are dynamic machines that use rotational energy from a motor to transfer fluids through the conversion of kinetic energy into hydraulic energy.
- Single-stage or multistage configurations available
- SS316L stainless steel construction for corrosion resistance
- Open, semi-open, or enclosed impeller options
- Sanitary models available with crevice-free design and polished internals (Ra ≤ 0.6 μm)
- CIP/SIP compatible for pharmaceutical and food-grade applications
- Mechanical seal or magnetic drive options

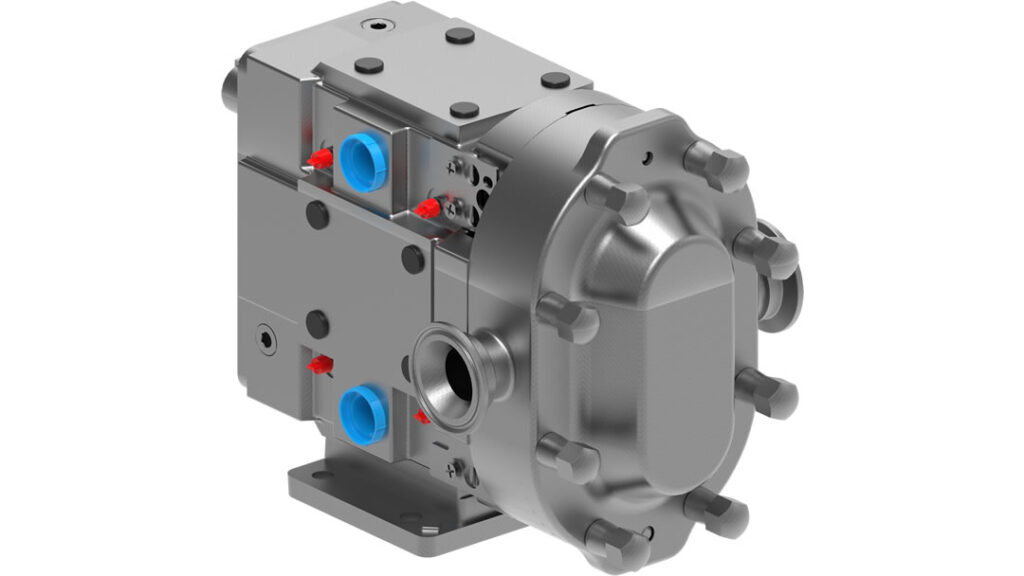

Circumferential piston pumps
- SS316L construction with polished wetted parts (Ra ≤ 0.6 μm)
- Sanitary design compliant with 3A, EHEDG, and FDA standards
- Bi-directional flow capability
- Low pulsation, low shear operation
- Optional jacketed casing for heating or cooling
Circumferential piston pumps
Circumferential piston pumps (CPPs) are positive displacement pumps designed for gentle, hygienic, and efficient transfer of high-viscosity or shear-sensitive fluids.
- SS316L construction with polished wetted parts (Ra ≤ 0.6 μm)
- Sanitary design compliant with 3A, EHEDG, and FDA standards
- Bi-directional flow capability
- Low pulsation, low shear operation
- Optional jacketed casing for heating or cooling
Rotary lobe pumps
- Constructed from SS316L with smooth, crevice-free internal surfaces (Ra ≤ 0.6 μm)
- Hygienic design compliant with 3A, EHEDG, and FDA standards
- Interchangeable lobe profiles (bi-wing, tri-lobe, multi-lobe) for tailored flow characteristics
- Bi-directional flow with consistent volumetric delivery
- Capable of handling solids without damage
Twin Screw Pumps
Twin screw pumps are hygienic, positive-displacement pumps that use two inter-meshing, counter-rotating screws to convey product axially through the pump chamber.
- Dual-purpose operation-handles product transfer at low speeds and CIP/SIP duties at high speeds
- SS316L wetted parts with polished surfaces (Ra ≤ 0.6 µm) and fully drainable, crevice-free design
- Self-priming & bidirectional; capable of dry running for short periods
- Wide viscosity range (1 cP to >1,000,000 cP) and excellent solids-handling capability
- Low shear / low pulsation for gentle handling of shear-sensitive media
- Front-loading, cartridge mechanical seals for quick maintenance; single, double-flushed, or aseptic seal options
Twin Screw Pumps
Twin screw pumps are hygienic, positive-displacement pumps that use two inter-meshing, counter-rotating screws to convey product axially through the pump chamber.
- Dual-purpose operation-handles product transfer at low speeds and CIP/SIP duties at high speeds
- SS316L wetted parts with polished surfaces (Ra ≤ 0.6 µm) and fully drainable, crevice-free design
- Self-priming & bidirectional; capable of dry running for short periods
- Wide viscosity range (1 cP to >1,000,000 cP) and excellent solids-handling capability
- Low shear / low pulsation for gentle handling of shear-sensitive media
- Front-loading, cartridge mechanical seals for quick maintenance; single, double-flushed, or aseptic seal options
Three screw pumps
Three screw pumps are positive displacement pumps designed for precise, low-pulsation transfer of clean, lubricating fluids.
- High-pressure operation-up to 100 bar (1450 psi)
- Steady, pulse-free flow for precision applications
- Compact footprint with inline axial flow
- Self-priming and capable of operating at variable speeds
- Close tolerance design for high volumetric efficiency
- Constructed from carbon steel or SS304/SS316 for corrosion resistance
